ZA/KJW型电动调节蝶阀
ZA/KJW型电动调节蝶阀由DKJ角行程电动执行机构和蝶阀组成，它与电动单元组合仪表配合使。具有结构简单、口径大、重量轻、操作方便等优点。广泛应用于冶金、电站石油、化工等部门。

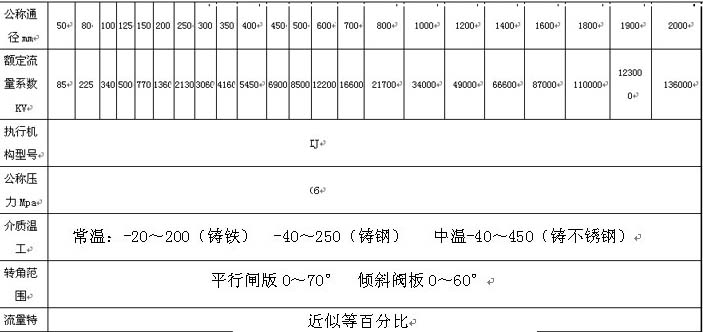

◆规格与技术参数
◆执行机构主要技术参数
|
型号 |
DKJ-110 |
DKJ-210 |
DKJ-310 |
DKJ-410 |
DKJ-510 |
|
输入信号 |
DC0-10mA DC4-20mA |
|
输入电阻 |
200 |
|
输出转角 |
0～90 |
|
输出矩力N.m |
40 |
100 |
250 |
600 |
1600 |
|
电源 |
200V 50HZ |
◆主要技术性能指标(电话：021-56697188 传真021-56697188)
|
项目 |
指标值 |
|
基本误差% |
±8.0 |
|
回差% |
6.0 |
|
死区% |
5.0 |
|
额定行程偏差% |
±4.0 |
|
允许泄漏量L/h |
平行阀板：2×10-2阀的额定容量，倾斜滑板：5×10-3阀的额定容量 |
◆允许压差与执行机构选型(电话：021-56697188 传真021-56697188)
|
公称通径mm |
配用执行机构 |
|
DKJ-110 |
DKJ-210 |
DKJ-310 |
DKJ-410 |
DKJ-510 |
DKJ-610 |
|
0° |
70° |
0° |
70° |
0° |
70° |
0° |
70° |
0° |
70° |
0° |
70° |
|
50 |
28.1 |
1.948 |
|
|
|
|
|
|
|
|
|
|
|
50 |
11.0 |
0.488 |
|
|
|
|
|
|
|
|
|
|
|
100 |
7.127 |
0.252 |
|
|
|
|
|
|
|
|
|
|
|
125 |
3.19 |
0.128 |
8.08 |
0.325 |
|
|
|
|
|
|
|
|
|
150 |
2.21 |
0.075 |
5.6 |
0.189 |
|
|
|
|
|
|
|
|
|
200 |
0.983 |
0.031 |
2.512 |
0.079 |
|
|
|
|
|
|
|
|
|
250 |
|
|
|
|
4.05 |
0.103 |
|
|
|
|
|
|
|
300 |
|
|
|
|
2.33 |
0.059 |
|
|
|
|
|
|
|
350 |
|
|
|
|
1.75 |
0.037 |
|
|
|
|
|
|
|
400 |
|
|
|
|
|
|
2.684 |
0.060 |
|
|
|
|
|
450 |
|
|
|
|
|
|
2.120 |
0.042 |
|
|
|
|
|
500 |
|
|
|
|
|
|
1.718 |
0.031 |
|
|
|
|
|
600 |
|
|
|
|
|
|
0.927 |
0.0178 |
|
|
|
|
|
700 |
|
|
|
|
|
|
0.628 |
0.0098 |
|
|
|
|
|
800 |
|
|
|
|
|
|
|
|
1.14 |
0.020 |
|
|
|
1000 |
|
|
|
|
|
|
|
|
0.619 |
0.0103 |
|
|
|
1200 |
|
|
|
|
|
|
|
|
|
|
0.504 |
0.016 |
|
1400 |
|
|
|
|
|
|
|
|
|
|
0.371 |
0.0106 |
|
1600 |
|
|
|
|
|
|
|
|
|
|
0.251 |
0.0076 |
|
1800 |
|
|
|
|
|
|
|
|
|
|
0.177 |
0.005 |
|
1900 |
|
|
|
|
|
|
|
|
|
|
0.151 |
0.0042 |
|
2000 |
|
|
|
|
|
|
|
|
|
|
0.129 |
0.0036 |
◆外形尺寸(电话：021-56697188 传真021-56697188)
|
公称通径 |
D |
D1 |
A |
e |
b |
L |
L1 |
L2 |
L3 |
H1 |
H2 |
H3 |
n-d |
配执行机构 |
|
50 |
|
110 |
245 |
30 |
|
60 |
92 |
139 |
357 |
55 |
299 |
270 |
4-14 |
DKJ-210 |
|
50 |
125 |
150 |
245 |
30 |
|
60 |
92 |
139 |
357 |
62.5 |
299 |
270 |
4-18 |
DKJ-210 |
|
100 |
145 |
175 |
245 |
30 |
12 |
60 |
102 |
149 |
357 |
72.5 |
299 |
270 |
4-18 |
DKJ-210 |
|
125 |
175 |
200 |
245 |
30 |
12 |
60 |
117 |
168 |
357 |
87.5 |
299 |
270 |
8-18 |
DKJ-210 |
|
150 |
200 |
225 |
245 |
30 |
12 |
60 |
130 |
181 |
357 |
100 |
299 |
270 |
8-18 |
DKJ-210 |
|
200 |
255 |
280 |
245 |
30 |
12 |
70 |
172 |
221 |
357 |
127.5 |
299 |
270 |
8-18 |
DKJ-210 |
|
250 |
310 |
335 |
300 |
36 |
14 |
70 |
197 |
258 |
507 |
155 |
340 |
298 |
12-18 |
DKJ-310 |
|
300 |
362 |
395 |
300 |
36 |
14 |
80 |
227 |
283 |
507 |
181 |
340 |
298 |
12-23 |
DKJ-310 |
|
350 |
412 |
445 |
300 |
36 |
14 |
80 |
252 |
290 |
507 |
206 |
340 |
298 |
12-23 |
DKJ-310 |
|
400 |
462 |
495 |
365 |
45 |
16 |
100 |
296 |
348 |
529 |
231 |
400 |
381 |
16-23 |
DKJ-410 |
|
450 |
518 |
550 |
365 |
45 |
16 |
100 |
321 |
371 |
529 |
259 |
400 |
381 |
16-23 |
DKJ-410 |
|
500 |
558 |
600 |
365 |
45 |
16 |
100 |
346 |
396 |
529 |
284 |
400 |
381 |
16-23 |
DKJ-410 |
|
600 |
755 |
706 |
365 |
45 |
30 |
150 |
480 |
418 |
530 |
377.5 |
863 |
482 |
20-25 |
DKJ-410 |
|
700 |
860 |
810 |
365 |
45 |
32 |
150 |
530 |
531 |
530 |
430 |
863 |
482 |
24-25 |
DKJ-410 |
|
800 |
975 |
920 |
420 |
51 |
34 |
200 |
595 |
586 |
681 |
487.5 |
917 |
480 |
24-30 |
DKJ-510 |
|
1000 |
1175 |
1120 |
420 |
51 |
36 |
200 |
735 |
721 |
681 |
587.5 |
917 |
480 |
28-30 |
DKJ-510 |
|
1200 |
1400 |
1340 |
|
60 |
45 |
250 |
906 |
980 |
|
|
|
|
32-34 |
DKJ-610 |
|
1400 |
1575 |
1520 |
|
60 |
25 |
300 |
956 |
1012 |
|
|
|
|
36-30 |
DKJ-610 |
|
1600 |
1785 |
1730 |
|
60 |
25 |
350 |
1065 |
1112 |
|
|
|
|
40-30 |
DKJ-610 |
|
1800 |
|
|
|
|
|
|
|
|
|
|
|
|
|
DKJ-610 |
|
1900 |
2100 |
|
|
|
25 |
350 |
1217 |
1315 |
|
|
|
|
44-30 |
DKJ-610 |
|
2000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
DKJ-610 |
技术参数如有更改，恕不另行通知
◆订货须知(电话：021-56697188 传真021-56697188)
1、产品型号 2、公称通径 3、公称压力 4、阀体和阀内件材质 5、转角范围 6、作用方式 7、介质温度 8、输入信号 9、附件
|
